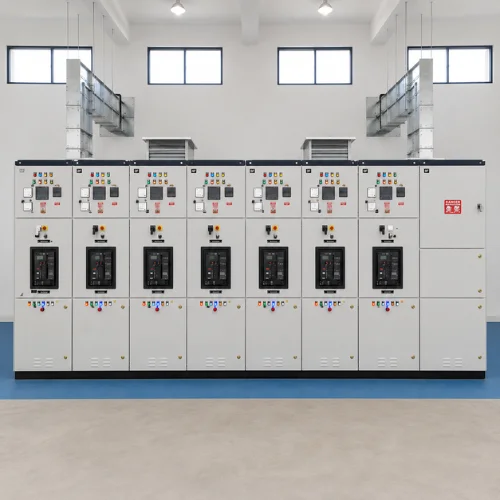

PCC Panel
- Voltage Range: Up to 690V AC and Current Rating: Up to 6300A.
- Robust and modular construction with high short-circuit withstand capacity up to 70kA for 1 sec.
- Compliance with IEC and IS standards.
- Protection Degree: IP42 / IP54 / IP65.
- Busbar: Copper / Aluminium.
- Form of Separation: Form 2, Form 3, Form 4.

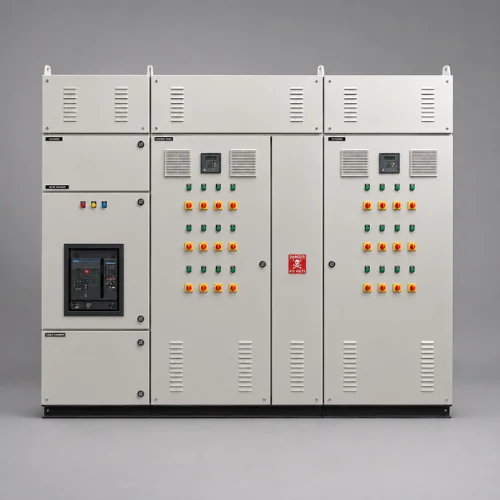

APFC Panel
- Microcontroller-based power factor correction relay for continuous PF monitoring.
- Automatically calculates required reactive power (kVAR) based on load conditions.
- Real-time sensing of system current for accurate and dynamic compensation.
- Multiple capacitor steps with different ratings for precise power factor correction.
- Automatic switching of capacitors ON/OFF to maintain the desired power factor.

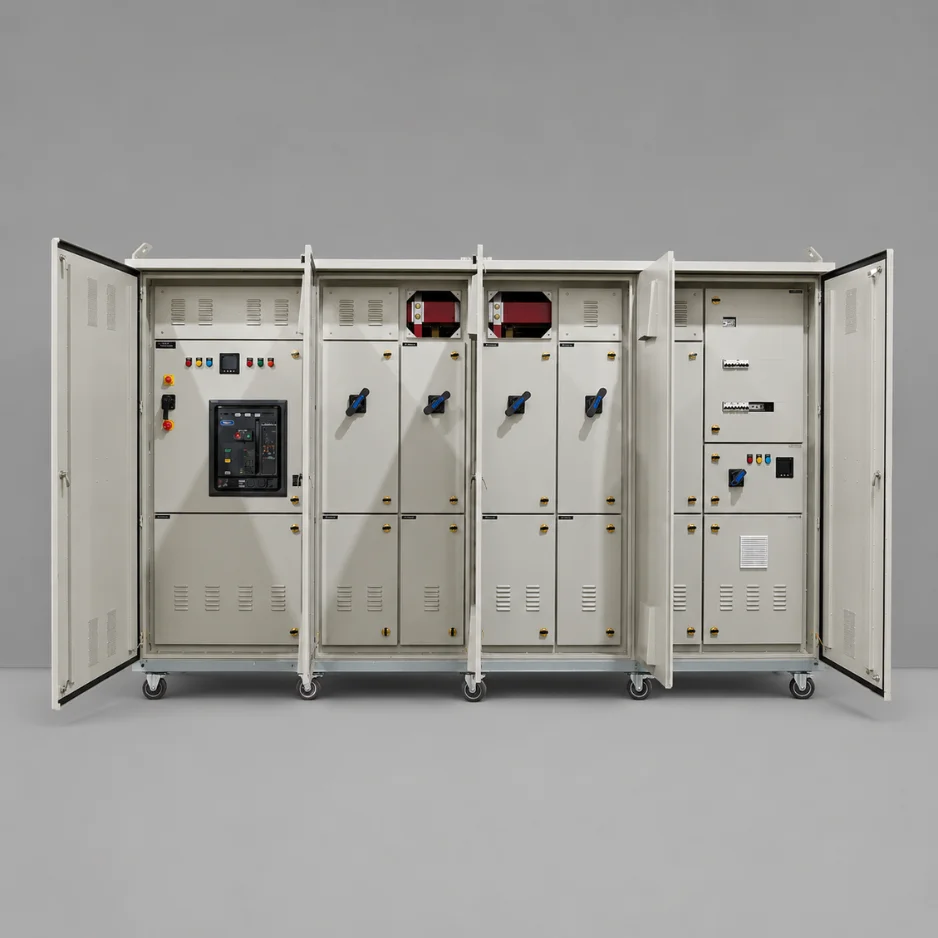

800V AC Solar Panel
- Designed for 800V AC solar power applications to deliver continuous, reliable operation with minimal maintenance.
- Safe and efficient AC power distribution for solar plants.
- Weatherproof outdoor panels with IP-rated enclosures up to IP 65.

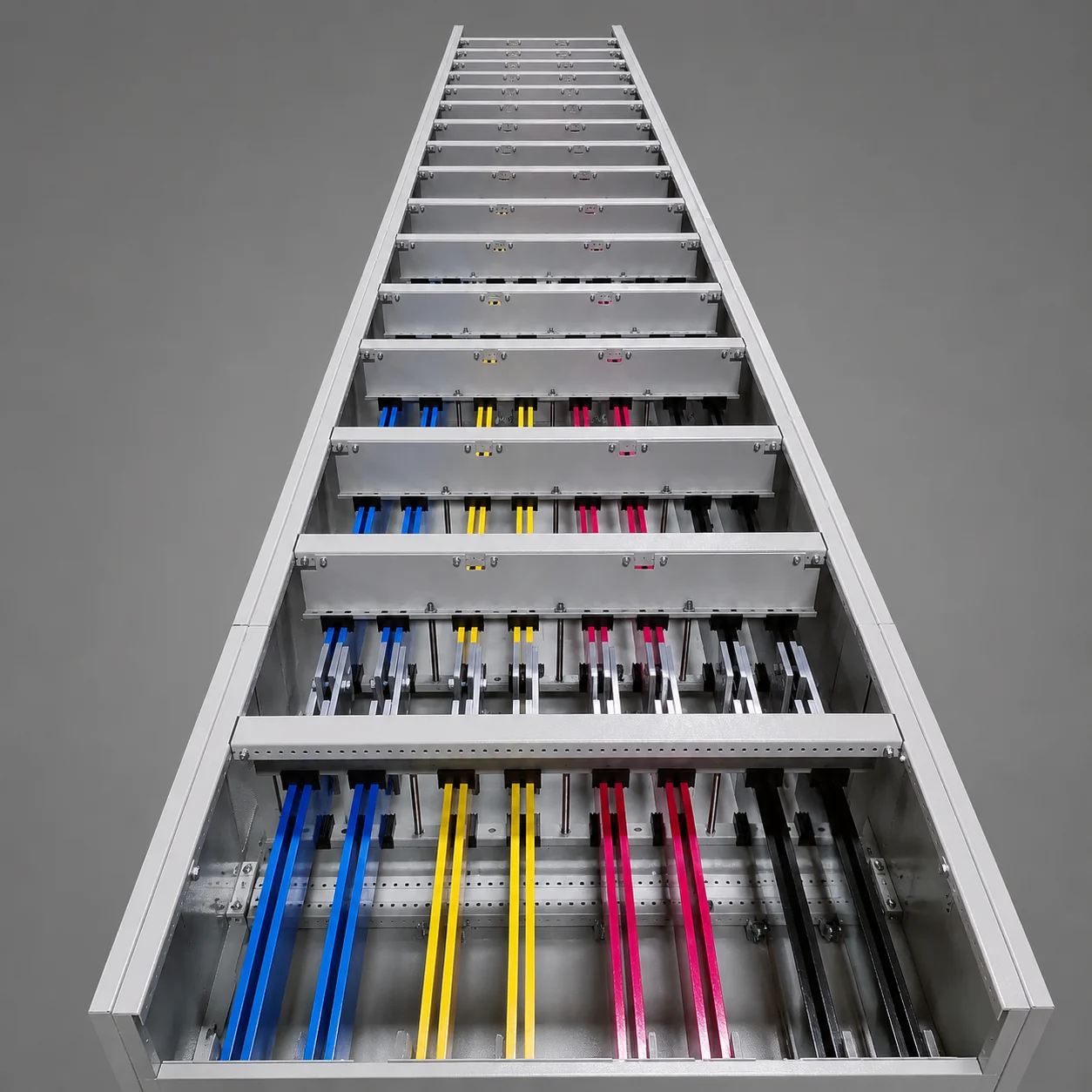

Bus Duct up to 6300A (Cu. & Al.)
- Efficient power distribution using copper or aluminium bus bars.
- Enclosed in sheet metal, welded metal, or cast resin for safe and reliable isolation.
- Designed to carry high current loads reliably. Rated up to 6300A.
- Available for both indoor and outdoor installations.

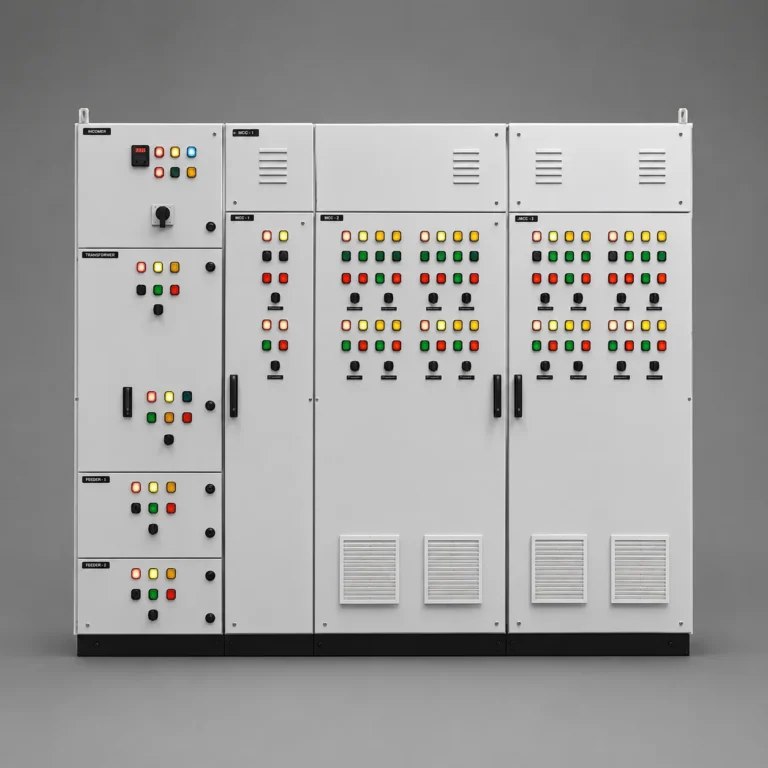

MCC Panel
- Centralized control and protection for motors.
- Supports DOL, Star-Delta, Soft Starter & VFD.
- Reliable and safe motor operation.
- Ideal for standard industrial motor applications.

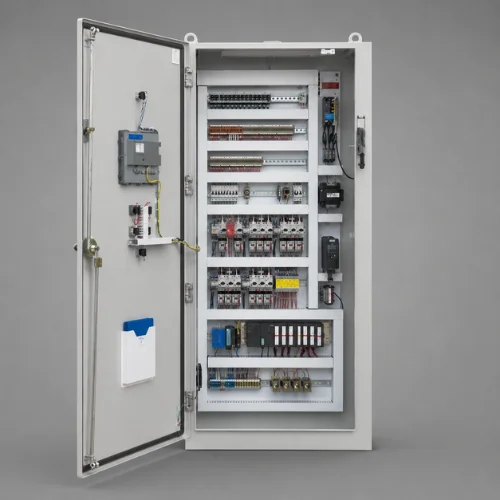

PLC Panel
- Complex wire logic simplified through intelligent programming with minimal wiring.
- Centralized communication and real-time system monitoring.
- Easy modification of application and operational logic.
- Accurate and reliable sequence-based operations.
Synchronizing / Load Sharing / AMF Panel
- Efficient power distribution using copper or aluminium bus bars.
- Enclosed in sheet metal, welded metal, or cast resin for safe and reliable isolation.
- Designed to carry high current loads reliably. Rated up to 6300A.
- Available for both indoor and outdoor installations.
PDB Panel / DB Panel
- Safe and Reliable Final Power Distribution.
- Protection at Every Circuit.
- Compact Design with Maximum Safety.
- Efficient Control for End Loads.

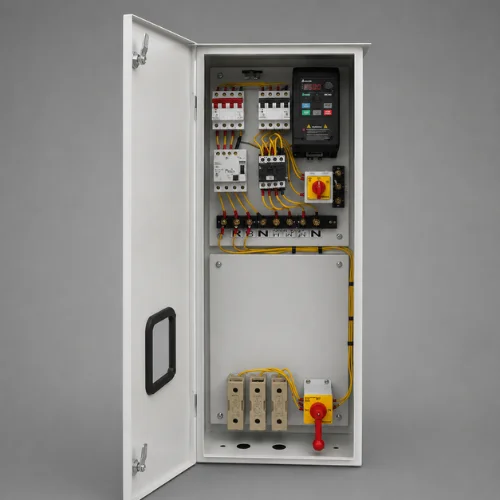

Street Light Panel
- Automatic ON/OFF control based on time or ambient light.
- Reliable control for street lights and high mast illumination.
- Uniform lighting with precise switching control.
- Compatible with PLC / Timer / Astronomical Timer systems.

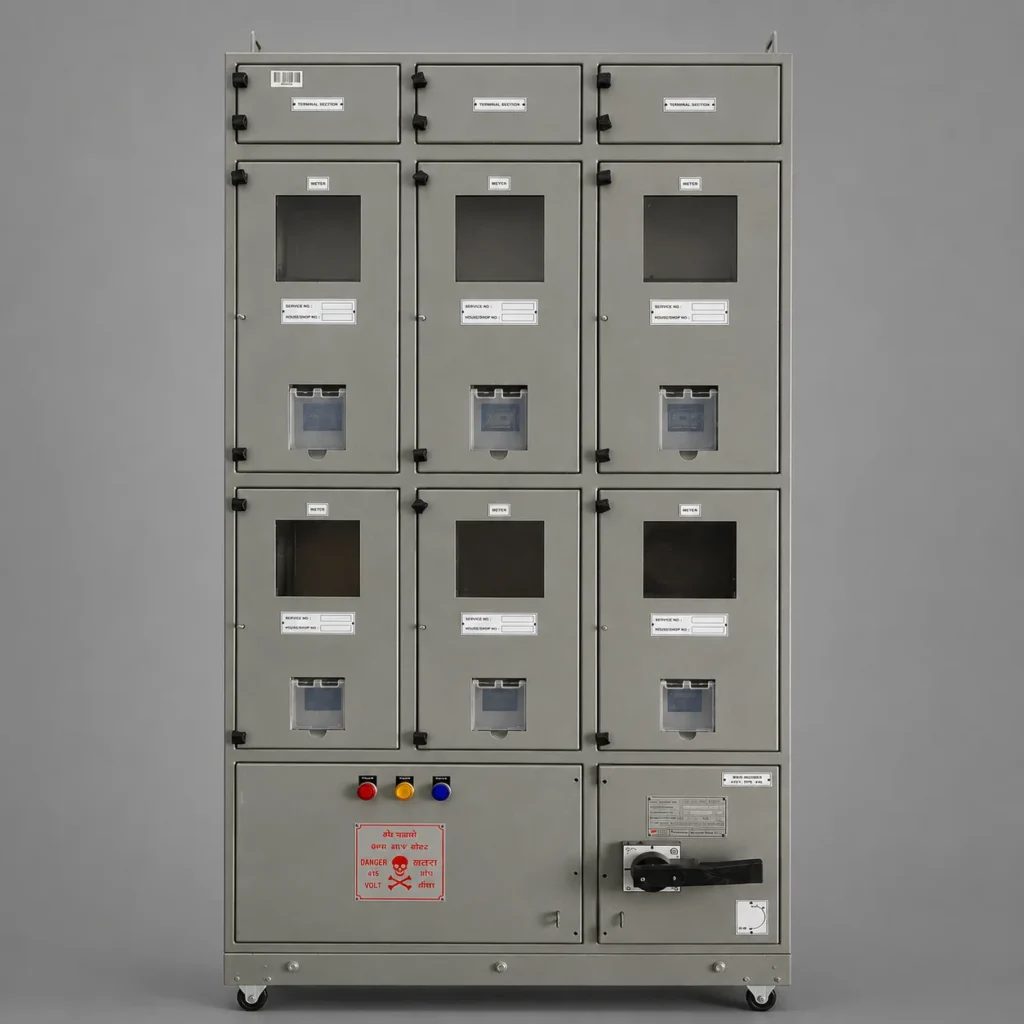

Meter Panel
- Accurate and reliable energy metering for residential buildings.
- Compact and safe design suitable for apartments and housing societies.
- Individual metering provided for each flat or unit.
- Clear meter visibility for easy reading and accurate billing.

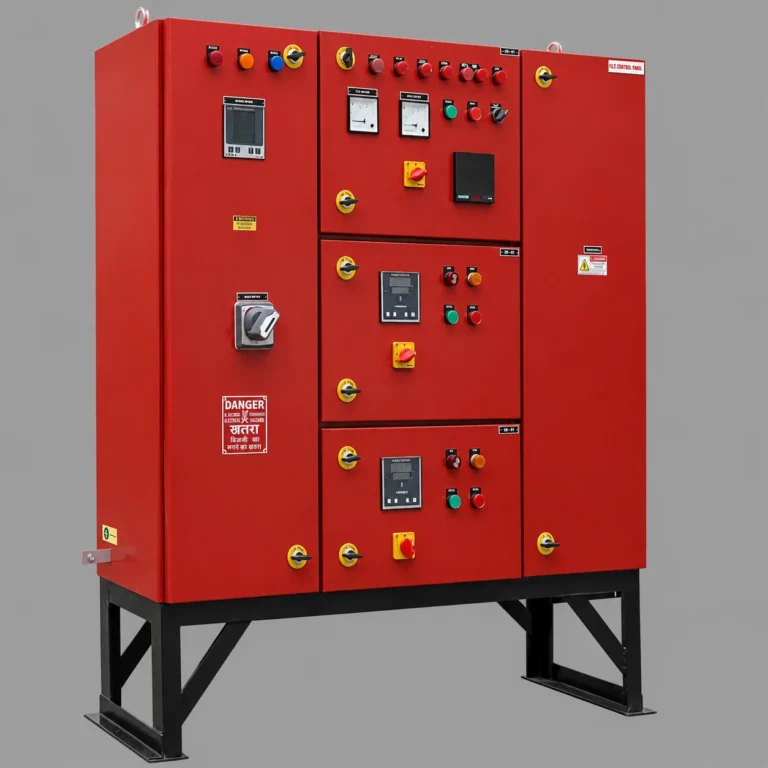

Fire Panel
- Complete control for fire protection pumping system.
- Logical and sequential operation of jockey pump, main pump, sprinkler pump, and diesel engine pump.
- Automatic battery charger for diesel engine to ensure continuous battery readiness.
- Auto and manual modes for flexible and reliable operation.
- Pump start/stop control through pressure switch signals.

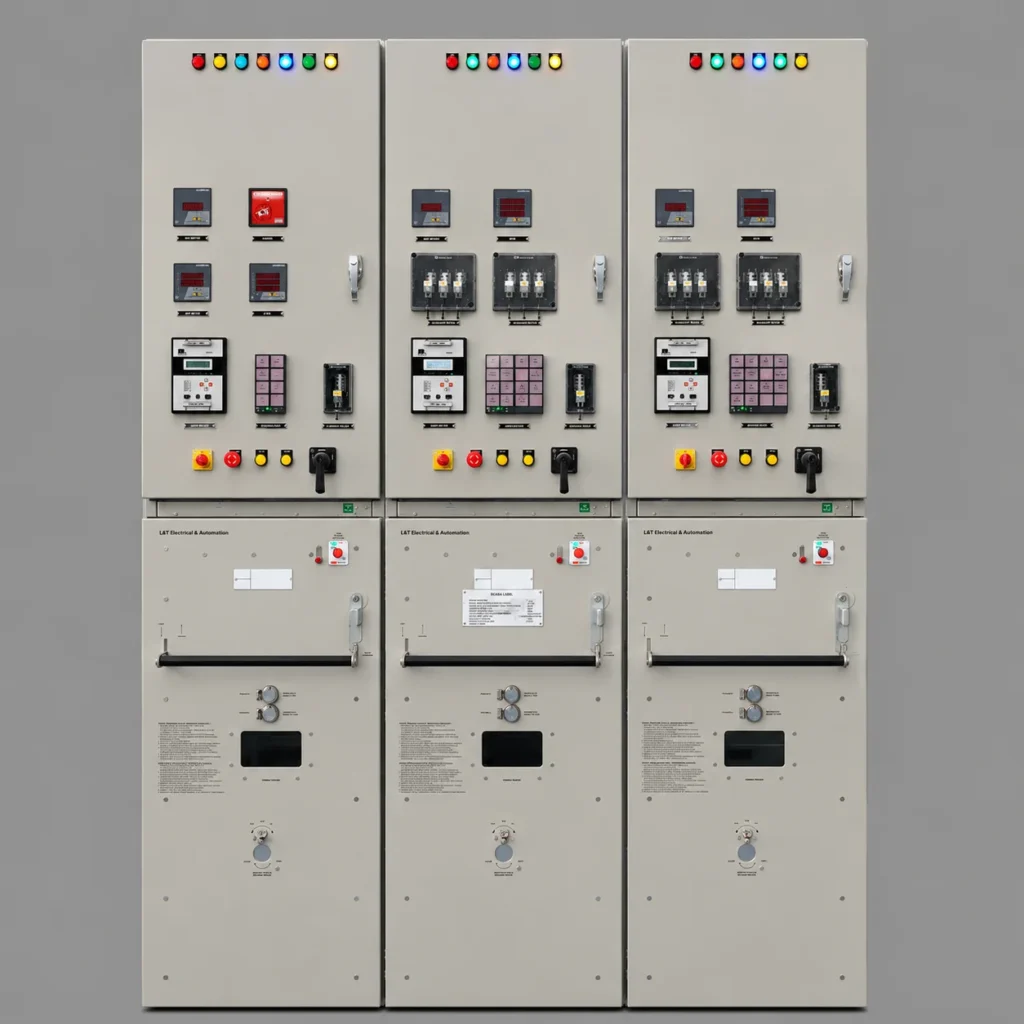

VCB Panel
- Voltage Ratings up to 33kV.
- Available in Indoor & Outdoor Configurations.
- Reliable Medium Voltage Power Distribution.
- High Fault Interruption Capability.
- Efficient Power Switching & Distribution.
- Trusted Solution for Modern Power Networks.
- Ideal for Industrial, Commercial & Utility Applications.

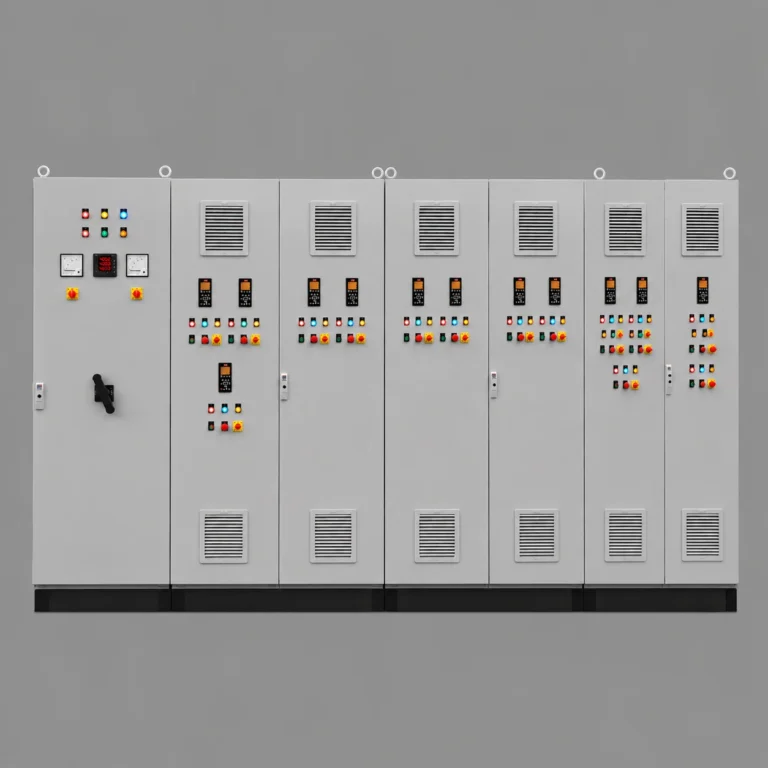

VFD Panel
- Precise Motor Speed Control.
- Energy-Efficient Drive Solutions.
- Reduced Power Consumption.
- Smooth Start & Stop Operation.
- Enhanced Motor Protection.
- Improved Process Control & Productivity.
- Voltage Ratings up to 690V.
- Available in Indoor & Outdoor Configurations.
- PLC & SCADA Integration Compatible.
- Compact, Reliable & Maintenance-Friendly Design.
- Suitable for Pumps, Fans, Blowers & Conveyors.
- Customized Solutions for Industrial Applications.
